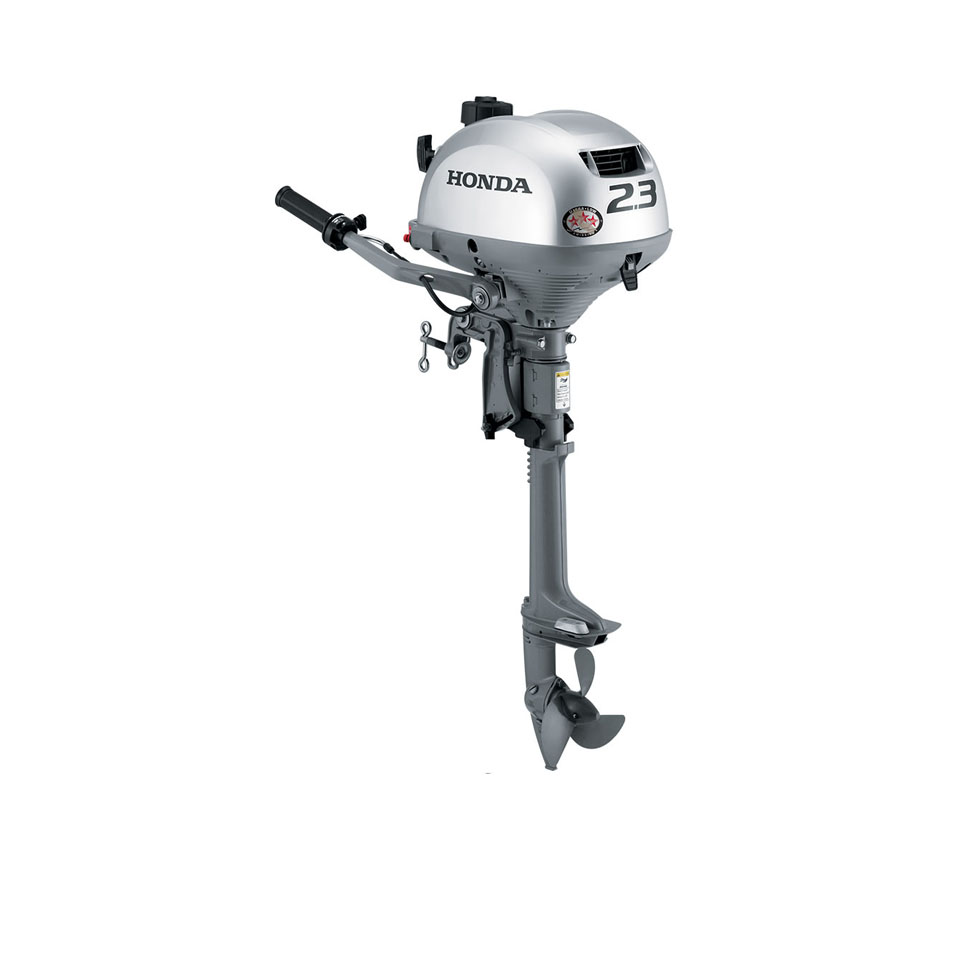

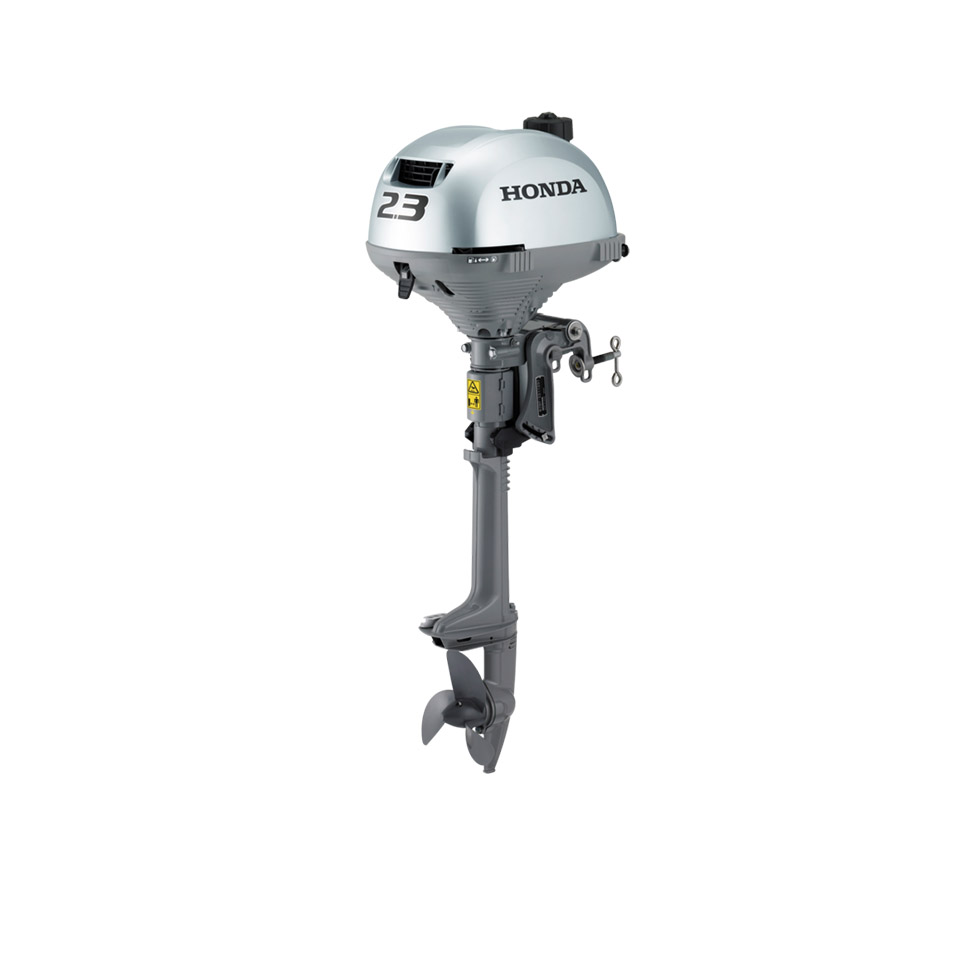

BF2.3 Honda Marine Engine

Perfect for aluminum fishing boats, inflatables, sailboats, or as a kicker for larger fishing boats. Shallow water drive, Best in class high output.

Compare

Add to wishlist

Shipping & Delivery

Estimated Delivery

Orders are usually delivered within 3-4 working days from purchase date.
View Our Return and Refund Policy

About Honda Marine

Honda Power Equipment Mfg., Inc. (HPE) has boosted its general purpose engine production to 1,000,000 engines per year (a significant increase from the 300,000 engines per year produced three years ago) for use by Honda and other OEMs.

SKU: 224-MRN-BF02 Categories: Marine Engines, Portable ( 2 - 20 hp)

OVERVIEW

INTRODUCTION

Get excellent performance in a lightweight, compact package. Perfect for inflatables, sailboats or as a kicker for larger fishing boats, the Honda BF8 Outboard Motor gives you the convenience of the Fold-Down Tiller Handle, the peace of mind of the Engine Alert System and high-output charging, which helps maintain battery charge or keep electronics going.

FEATURES

Perfect for aluminum fishing boats, inflatables, sailboats, or as a kicker for larger fishing boats.
Shallow water drive
Best in class high output charging
Easy starting
Convenient steering and controls
Available with Power Thrust Design (BFP)

SPECIFICATIONS

Specs

Engine

Type	4-Stroke SOHC 2 Cylinder/4 Valves
Displacement	222 cc (13.5 cubic inches)
Bore & Stroke	58 mm x 42 mm (2.3 x 17 inches)
Full Throttle RPM Range	4,500-5,500 RPM
Rated Power	8 HP @ 5,000 RPM
Cooling System	Water Cooled
Fuel Delivery	1 Carburetor
Ignition System	PGM-IG
Starting System	Electric/Recoil
Exhaust	Through Hub
Lubrication	Wet Sump
Trim Range	5 Stage 4°-8°-12°-16°-20°
Tilt Range	71°

Drive

Gear Ratio	2.33:1
Gear Shift	F-N-R

Equipment

Alternator with voltage regulator (Electric Start)	12-Amp (148 watt)
Alternator with voltage regulator (Manual Start)	6-Amp (76 watt)
Propeller	4-Blade Aluminum
Diameter x Pitch, Standard	9¼ x 8 inches
Diameter x Pitch, Power Thrust	10 x 6.5 inches
Power Tilt	Available
Power Trim & Tilt	NA
Gas Assisted Tilt	NA
Oil Pressure Alert	Standard
Temperature Alert	Standard
Rev-Limiter	Standard

Dimensions

Overall Width

345 mm/13.6 inches

Dry Weight

S-Type	42 kg/92 lbs.
L-Type	44 kg/98 lbs.
X-Type	48 kg/107 lbs.

Transom Height

S Type	381 mm/15 inches
L Type	508 mm/20 inches
X Type	635 mm/25 inches

OWNERS MANUAL(S)

BABC-1000001-THROUGH-9999999
