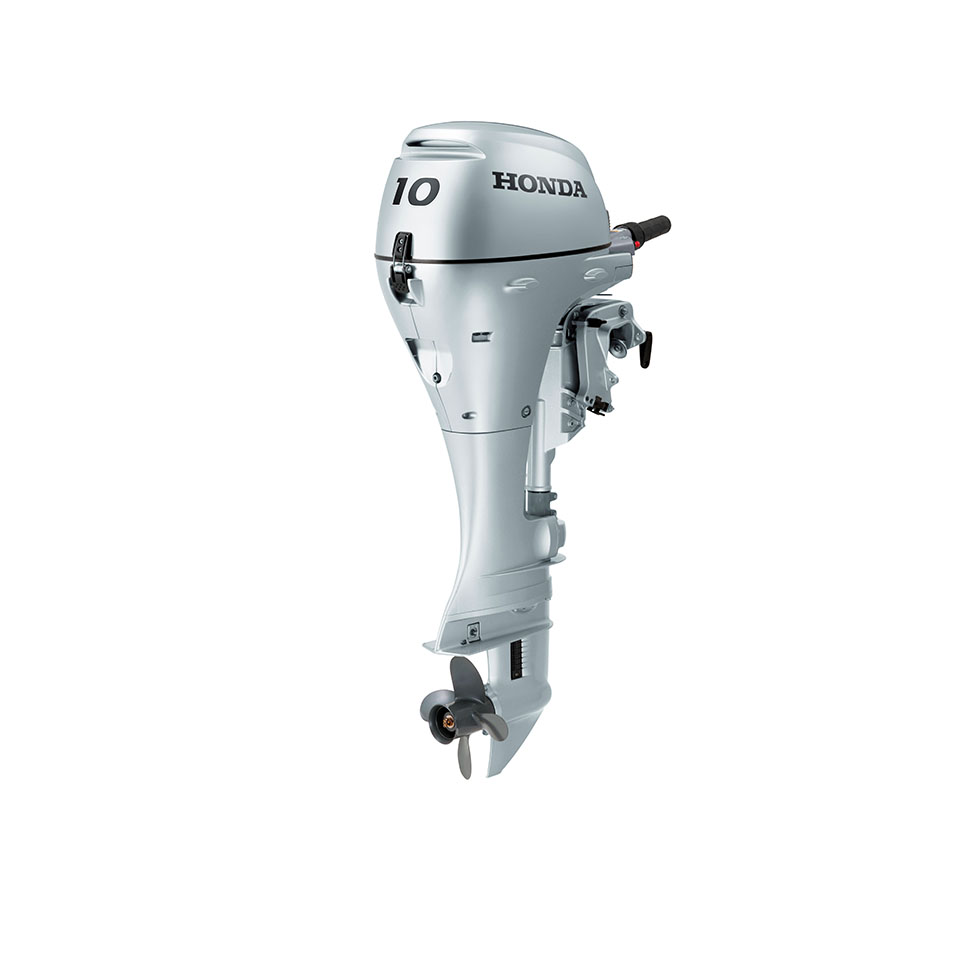

BF10 Honda Marine Engine

INTRODUCTION

BF10 has been designed for boaters who want dependable performance in a compact engine and is perfectly suited for use with sailboats, inflatables and small aluminium boats. Offering very low fuel consumption and maintenance costs, while still delivering optimum performance and durability.

Largest Capacity in Its Class

At 222cc, Honda’s BF10 has the largest displacement in its class.

Four-Stroke Engine Design

World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing.

Auto Start Enrichment

On electric start models, automatically adjusts the air/fuel mixture for quick, easy starting and warm-up operation.

Easy One Hand Starting

Working together, a built-in decompression release and Digital CDI system set the ignition timing during start-up. Greatly reduces the effort required to pull-start the engine by hand!

Pgm Ignition

A reliable microprocessor accurately controls ignition timing during start-up and across the entire rpm range, providing optimum overall operation.

Positive Lubrication

A crankshaft-driven, automotive-style trochoid oil pump ensures critical engine component long-term durability.

High Output Charging

2amp at 1000rpm and an amazing 12amp at only 3000rpm to maintain the battery charge and keep electronics going, even at trolling speeds.

Pendulum Mount System

Honda’s exclusive triangulated rubber mount system absorbs vibration and provides unbelievably smooth operation.

Engine Alert System

The integrated warning system protects the engine from severe damage due to low oil, over-revving and overheating.

Corrosion Protection System

A patented ‘double sealed’ multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.

Fresh Water Flush port

Flushes debris and saltwater out of the engine, extending the life of the outboard.

Longer Tiller Handle

Honda’s BF10 has a convenient longer tiller handles for increased control and reduced steering effort. The extended handle is also made of a new lightweight composite for increased durability and weight reduction.

Up Front Tiller Controls

The convenient Forward-Mount Shift Lever allows fingertip shifting. Twist Grip Throttle and Tensioner allows for superior throttle friction control, minimizing driver fatigue.

Ez Steer Friction Control

Unique lever design allows operator to precisely adjust steering tension for improved control and comfort.

Shallow Water Drive

Allows you to run in shallow water and greatly reduces the risk of engine damage.

Integrated Carrying Handle

A convenient, foldaway carry handle is situated at the exact top/bottom balance point of the engine, so that the engine carries more easily in a level position.
